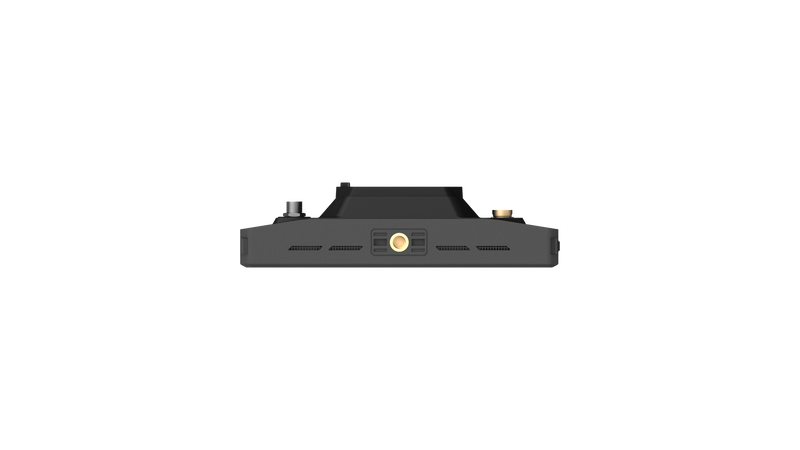

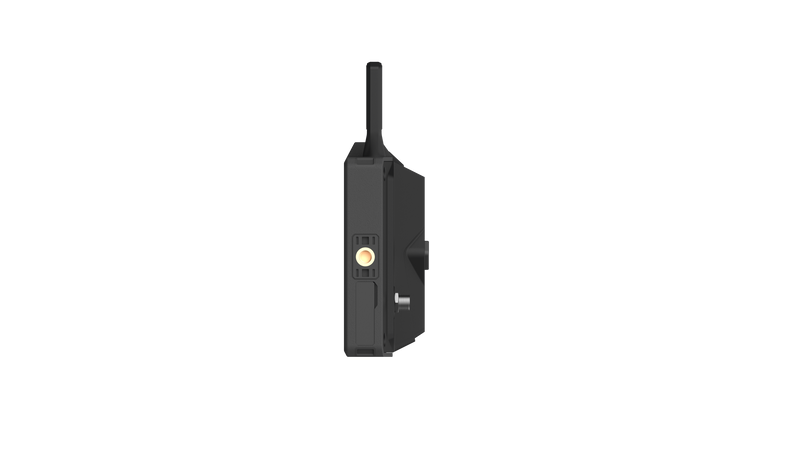

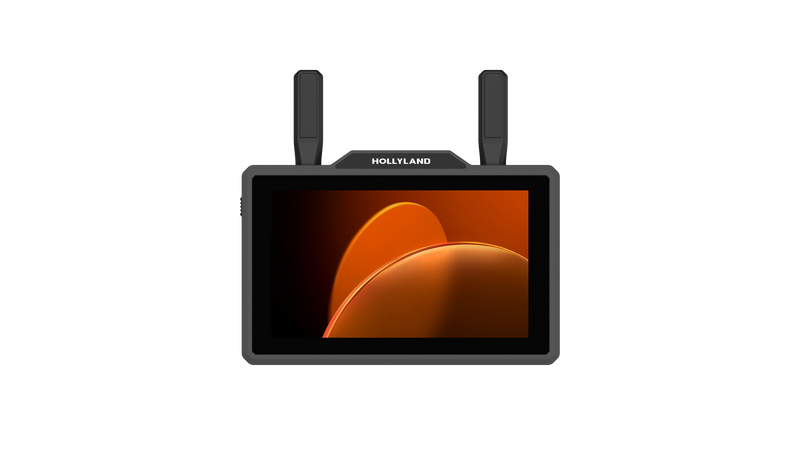

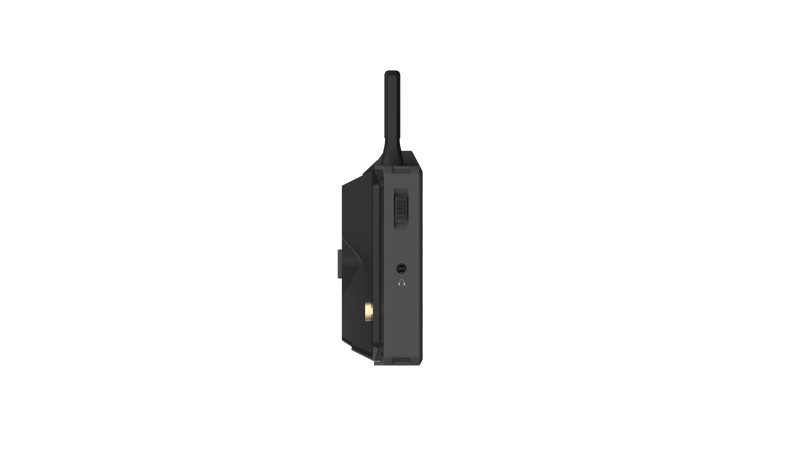

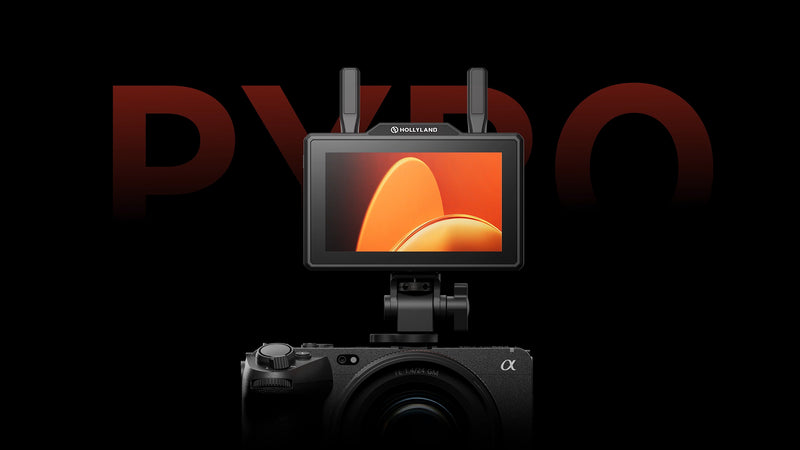

Hollyland Pyro 5 Wireless 5.5" Transceiver Monitor

Product Description

The Hollyland Pyro 5 is a 5.5-inch wireless monitor that combines monitor, recorder, transmitter, and receiver in one compact device. Thanks to dual-band transmission (2.4/5 GHz), broadcast mode for up to 1 TX and 4 RX, intelligent channel selection, and automatic frequency hopping, you get stable, low-latency video transmission – with a choice of maximum image quality or particularly low delay. The 1,500-nit display remains perfectly readable even in daylight. Via the touchscreen, you can control camera parameters such as shutter, aperture, focus, white balance, trigger, and ISO directly on the device. Simultaneously, you can record proxy files with timecode in real-time to an SD card or USB drive and, if necessary, stream via RTMP (using the HollyView app) to platforms such as YouTube, TikTok, or Zoom. HDMI and SDI (loop) connections, advanced image analysis tools, pairing lock, and the robust dual-injection housing round off your reliable set hub for solo shooters and teams.

Key Features

• Screen, recorder, transmitter, and receiver in one device

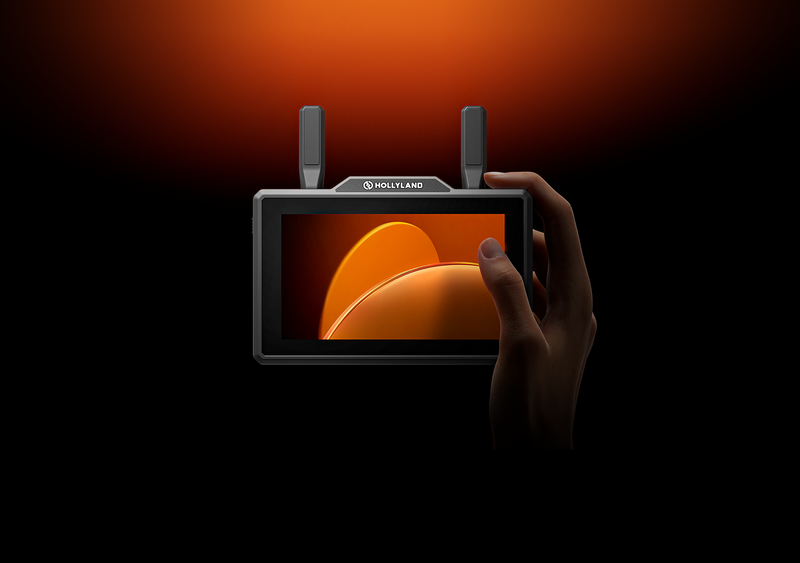

• 5.5″ touchscreen, 1920×1080, 1,500 nits, Rec.709
• Dual-band transmission (2.4 G/5 G) with automatic frequency hopping

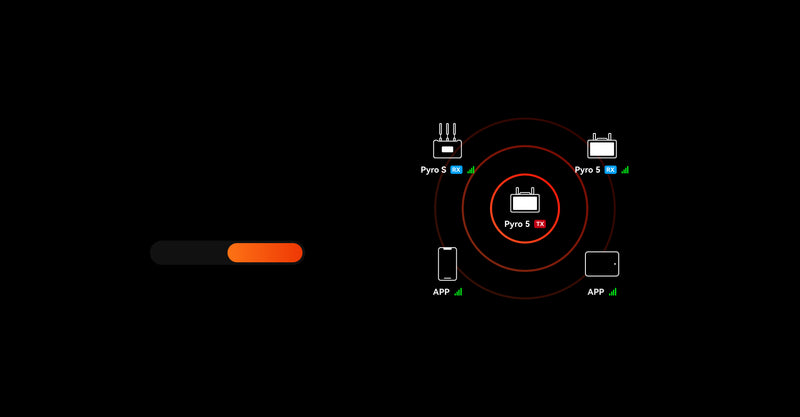

• Broadcast mode: 1 TX to up to 4 RX, intelligent switching
• Range: up to 400 m (LOS), 150 m back-to-back; in broadcast mode up to 200 m LOS
• Low latency: approx. 60–75 ms (Smooth/HD mode)
• Direct camera control via touch (shutter, aperture, focus, WB, ISO, trigger)
• Proxy recording with timecode to SD card or USB drive
• RTMP livestreaming via HollyView app (e.g., YouTube, TikTok, Zoom)

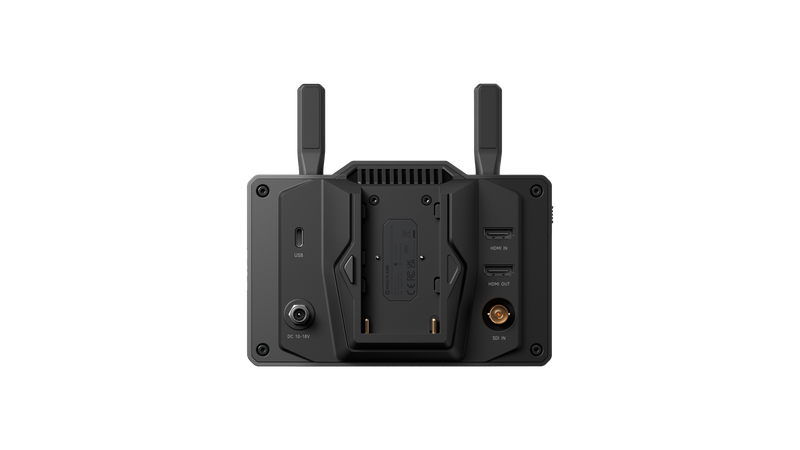

• HDMI 1.4b & 3G-SDI In, HDMI/SDI loop-out; AV: H.264 up to 12 Mbit/s
• Intelligent channel selection with visual signal strength indicator

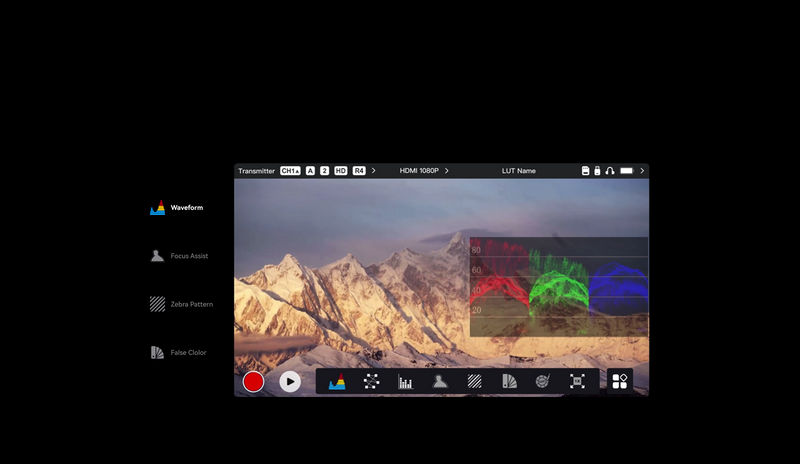

• Advanced image analysis tools for precise monitoring
• Pairing lock prevents signal confusion in multi-setup environments
• Robust dual-injection housing, SMA antennas, 3.5 mm headphone jack
• Power: NP-F (6–16 V) or DC-In (10–18 V)
• Dimensions approx. 180×127×45.8 mm; Weight ≈ 538 g

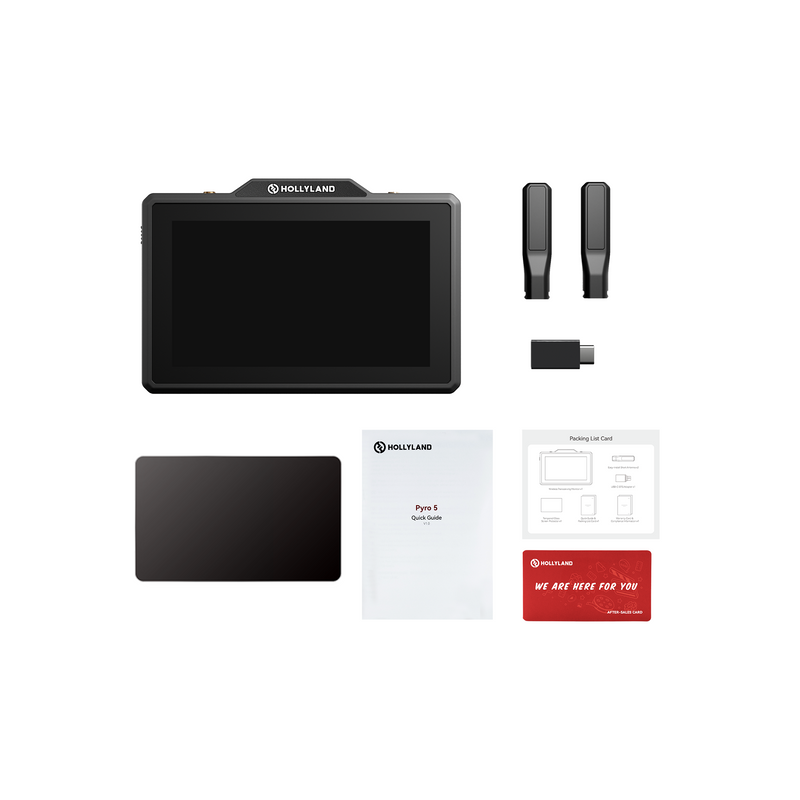

Scope of Delivery

• 1× Pyro 5 Wireless Transceiving Monitor
• 2× Short antenna (easy to install)
• 1× Quick Start Guide
• 1× Warranty Card
• 1× Screen protector (tempered glass)
• 1× Packing list
• 1× USB-C OTG adapter
